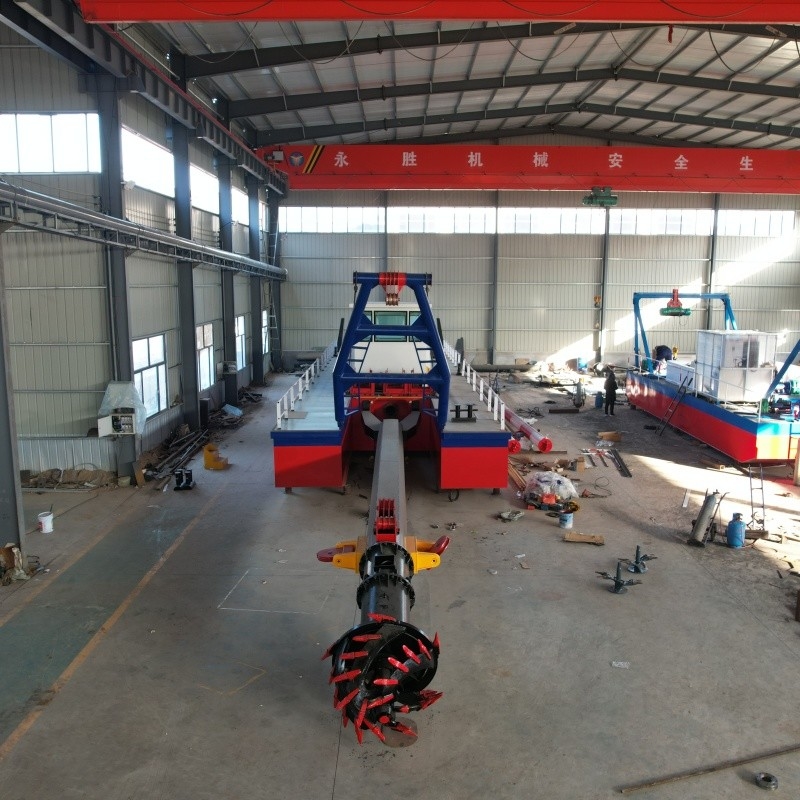

6 Inch Small Sand Dredging Ship With 30m3/h Output
CSD series dredgers can be applied to many kinds of geologic structures and can be widely used
in mineral digging, port dredging and reclamation works. By absorbing advanced technology of Dutch
and American related products, this series of dredgers show their characteristics of rational design,
all hydraulic driven, simple operation, little maintenance and strong power.
Cutter suction dredger makes use of a cutter head to loosen the material to be dredged and pumps the
dredged material via a pipeline ashore or into barges. The powerful cutter swings around the spud-pole
powered by winches while dredging,then the high-pressure sand pump sucks up the loosened mixed
materials to the destination through the suction pipe
| Model list for hydraulic cutter suction dredger |
| Model |
Inch |
Diameter
pipe
|
Water
flow
|
Solid
capacity |
Total
power
|
Dredging
depth
|
Discharge
distance
|
| YSCSD150 |
6 Inch |
150 mm |
260 m3/h |
30 cbm/h |
102 KW |
4m |
600 m |
| YSCSD200 |
8 Inch |
200 mm |
600 m3/h |
80 cbm/h |
213 KW |
6m |
800 m |
| YSCSD250 |
10 inch |
250 mm |
1,000 m3/h |
160 cbm/h |
367 KW |
8m |
1,100 m |
| YSCSD300 |
12 inch |
300 mm |
1,500 m3/h |
240 cbm/h |
591 KW |
10 m |
1,100 m |
| YSCSD350 |
14 inch |
350 mm |
2,400 m3/h |
360 cbm/h |
971 KW |
12m |
1,200 m |
| YSCSD400 |
16 Inch |
400 mm |
3,000 m3/h |
500 cbm/h |
1,057 KW |
14m |
1,400 m |
| YSCSD450 |
18 Inch |
450 mm |
3,500 m3/h |
700 cbm/h |
1,462 KW |
15m |
1,500 m |
| YSCSD500 |
20 Inch |
500 mm |
3,800 m3/h |
760 cbm/h |
1,648 KW |
15m |
1,600m |
| YSCSD600 |
24 Inch |
600 mm |
6,000 m3/h |
900 cbm/h |
2,511 KW |
15m |
1,800 m |
| YSCSD650 |
26 Inch |
650 mm |
7,000 m3/h |
1,400 cbm/h |
3,705 KW |
Max.18m |
1,800m |
Advantages
1. Great Adaptability. The cutter suction dredgers can be widely used in river, lake, sea, reservoir
and so on for sand/mud dredging, waterway cleaning and reclamation work.
2. High Efficiency. The cutter suction dredgers can dredge and discharge sand/mud at the same
time without other ships for transportation. So the cost will be much lower and they can reach big
production capacity of several thousand cubic meters per hour and also several thousand meters
discharge distance.
3. Easy Operation. With hydraulic system and PLC control system, all the dredgers operation can
be done in the operation cabin.
4. Quick disasembly and assembly.
Our Services
1. We sign a long-time after-sale service agreement with customers.
2. We provide rational and practical design according to customer's request.
3. We send engineer to assemble and test the machine within the period as agreed in the agreement.
4. Within warranty period, we provide free repair if quality problems emerge.
5. We provide free training of operation and maintenance for customers.
6. We supply high quality accessories in low price.
7. We make an excellent filing of customers for long-term following-up service.
FAQ:
Need for reply:
1. How many cubic meter per hour for the clear water flow?
2. How many meters for the dredging depth?
3. How many meters for the discharge distance?
4. Will you use the dredger in the river,lake,sea or channel?
